STARCONN 112F 系列PART NUMBERS:112F08-000000-A2-R 112F12-000000-A2-R 112F15-000000-A2-R

STARCONN 112F 系列描述:
Product No. 112F
Product Name FPC PITCH 0.50mm, H 1.2mm Back FLIP TYPE, ASSEMBLY

STARCONN 112F 系列连接器各项性能表如下:
连接器各项性能表如下:

产品特征:
Power Sum :
ProductApplication : TV Panel Light Bar Conn.


主要材料:
Insulat : L.C.P.Series,UL94 V-0.(RoHS Compliant)
Spacer : NylonSeries,UL94 V-0.(RoHS Compliant)
Contact : CopperAlloy C5240XSH
Hold Down : BrassC2680R-H


电气性能:
Current Rating :0.5A AC.
Voltagr Rating :50V DC.
InsulationResistance : 500MΩMIN. at 100V DC.
Contact Resistance: 100mΩMAX, Including FPC/FFC Conduct/ Resistance.
DielectricWithstanding Voltage : 150V AC F/ 1 Minute.


机械参数/性能:
Current Rating :0.5A AC.
Voltagr Rating :50V DC.
InsulationResistance : 500MΩMIN. at 100V DC.
Contact Resistance: 100mΩMAX, Including FPC/FFC Conduct/ Resistance.
DielectricWithstanding Voltage : 150V AC F/ 1 Minute.

环境要求:
Temperature Rating: -55℃ to +90℃.

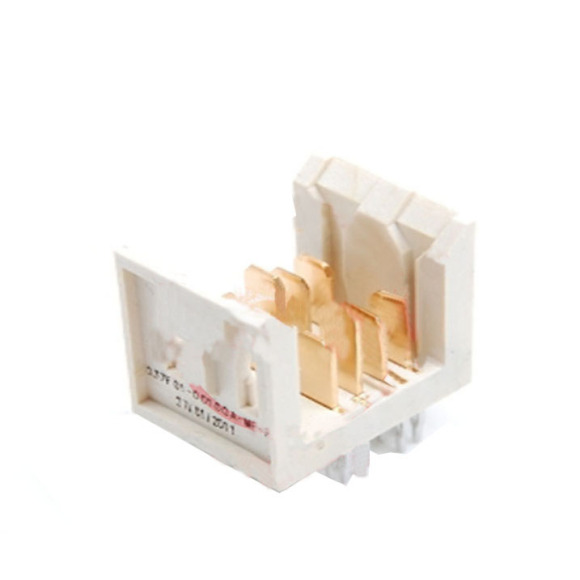

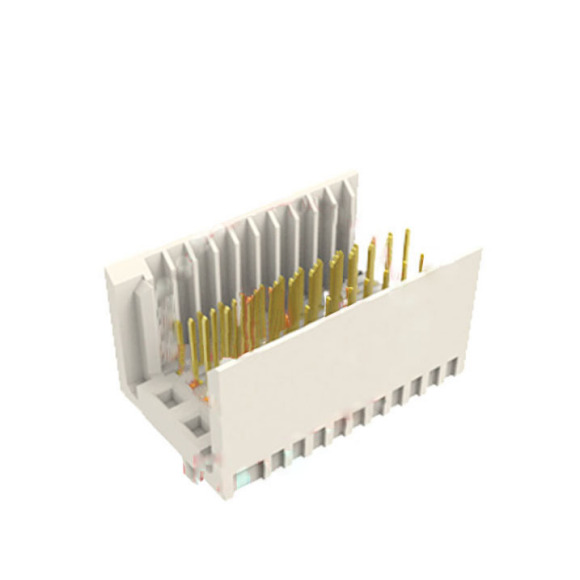

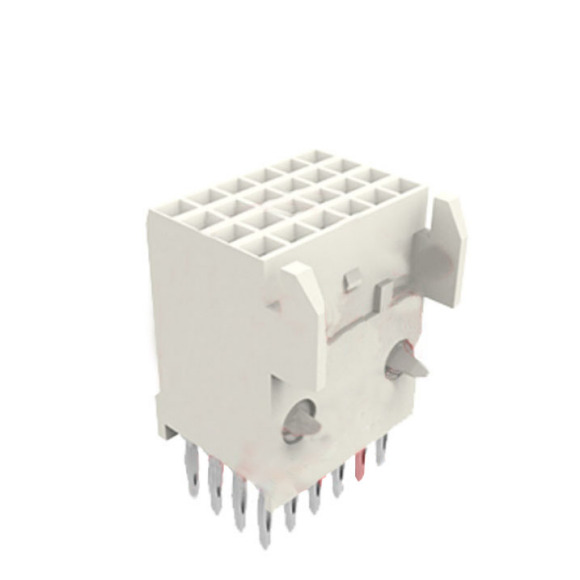

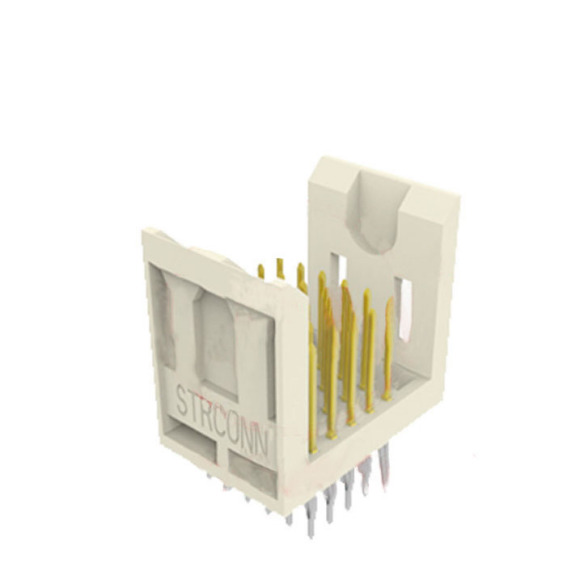

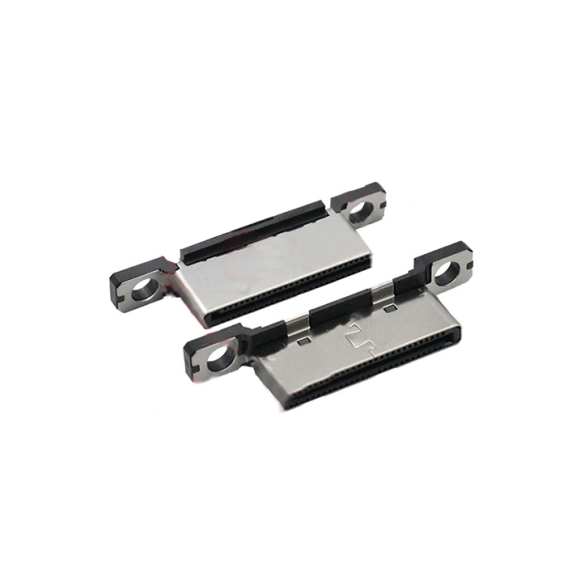

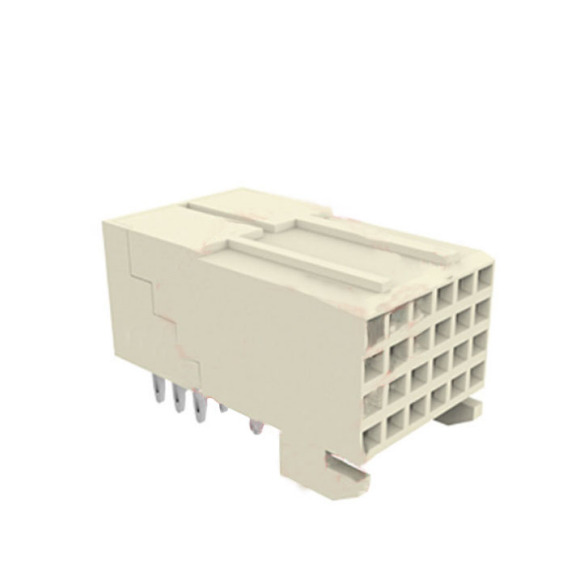

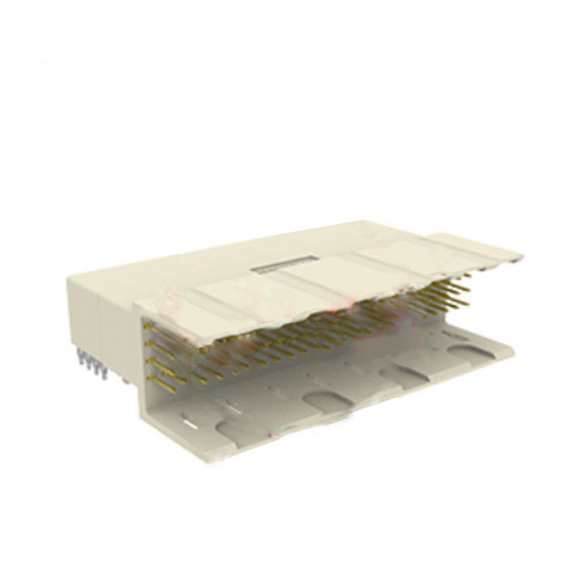

相关产品实物图片(图片仅供参考):
