STARCONN 056B 系列PART NUMBERS:056B25-0001AA-MF 056B25-0001BA-MF 056B25-0001CA-MF

STARCONN 056B 系列描述:

Product No. 056B
Product Name Hard Metric R/A Male Connector

STARCONN 056B 系列连接器各项性能表如下:

连接器各项性能表如下:

产品特征:
Power Sum :
Right Angle Type
ProductApplication:Router

主要材料:
Contacts:PhosphorBronze
Housing:P.B.T. +30% Glass Reinforced UL94V-0

电气性能:
Current Rating:1A.
Voltage Rating:30VAC.
InsulationResistance:10000 MΩ At 100V DC.
ContactResisance:30 mΩ MAX.
DielectricWithstAnding Voltage:1000V AC For 1 Minute.

机械参数/性能:
Mating Force:n×0.75N MAX(Per Singal Contact).
ExtractionForce:0.15N MIN. Per Singal Contact
Pull Out Force PerContact:12N MIN.
Press-In Force PerContact:65N MAX.

环境要求:
Temperature Rating:-55℃ to 125℃

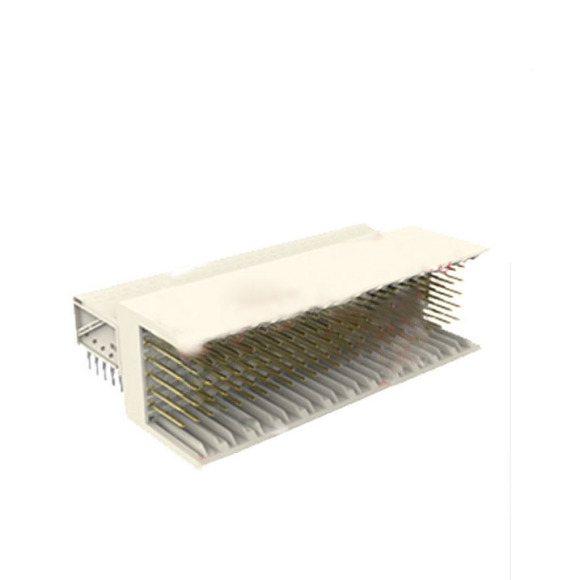

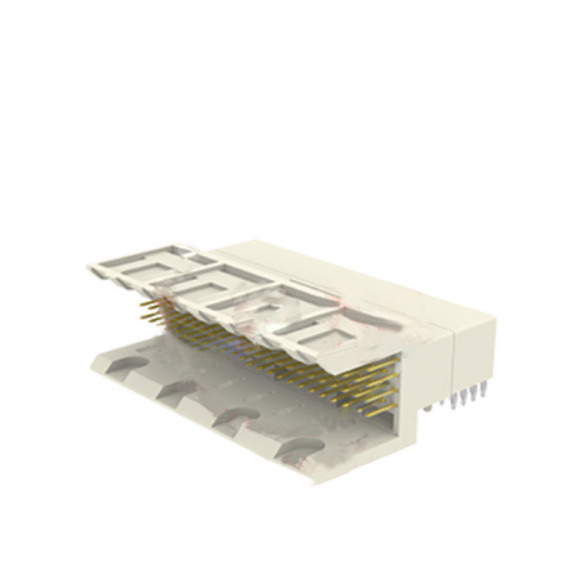

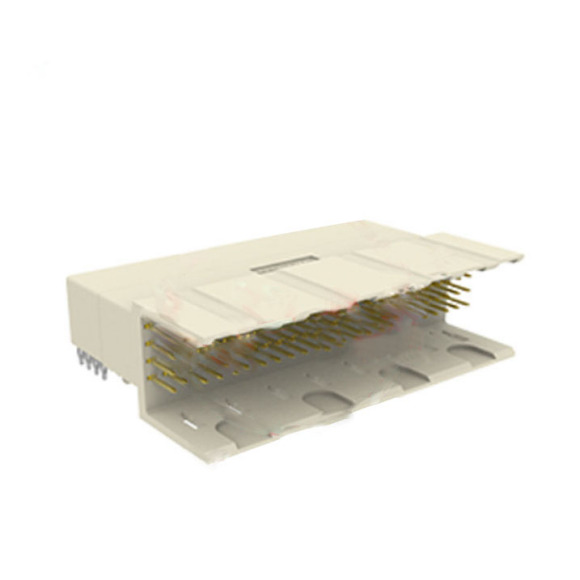

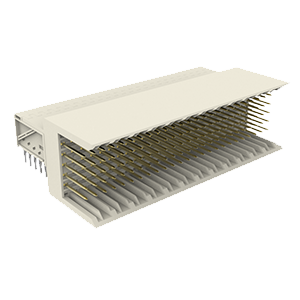

相关产品实物图片(图片仅供参考):
