文章出处：公司新闻阅读量：发表时间：2020-08-01 14:27

苏州汇成元电子,STARCONN 091B01-0A000A

STARCONN091B 系列PART NUMBERS: 091B01-0A000A-MF 091B01-0A010A-MF
091B01-0A020A-MF 091B01-0D000A-MF 091B01-0D010A-MF 091B01-0D020A-MF
091B01-0G000A-MF 091B01-0G010A-MF 091B01-0G020A-MF
091B02-0A000A-MF 091B02-0A010A-MF 091B02-0A020A-MF
091B02-0D000A-MF 091B02-0D010A-MF 091B02-0D020A-MF
091B02-0G000A-MF 091B02-0G010A-MF 091B02-0G020A-MF
091B04-0A000A-MF 091B04-0A010A-MF 091B04-0A020A-MF
091B04-0D000A-MF 091B04-0D010A-MF 091B04-0D020A-MF
091B04-0G000A-MF 091B04-0G010A-MF 091B04-0G020A-MF
091B08-1C1000-T6 091B08-1C1100-T6 091B08-1C1200-T6
091B08-1C1000-T9 091B08-1C1100-T9 091B08-1C1200-T9
091B08-1C1000-TA 091B08-1C1100-TA 091B08-1C1200-TA
STARCONN 091B系列描述:

Product No. 091B
Product Name 4 Row Futurebus Female Connector

STARCONN091B系列连接器各项性能表如下:

连接器各项性能表如下:

产品特征:
Power Sum :
Right Angle Type
Telecom- and inNetwork-Systems
Block:1，2，4，8
Pitch:2.0mm
Press-Fit

主要材料:
Contacts:PhosphorBronze
Housing:HighTemperature Thermoplastic UL-94V-0.
Spacer:HighTemperature Thermoplastic UL-94V-0.

电气性能:
Current Rating:1 A
Voltage Rating:30VAC.
InsulationResistance:5，000 MΩ MIN.
DielectricWithstAnding Voltage:1，000 V AC For 1 Minute

机械参数/性能:
Mating Force:0.45NPer Pin MAX.
UnmatingForce:0.15N Per Pin MIN.
Press-Fit MatingForce:50 N MAX.
Plated ThroughHole:φ0.65~φ0.80mm

环境要求:
TemperatureRating:-55℃ to 125℃

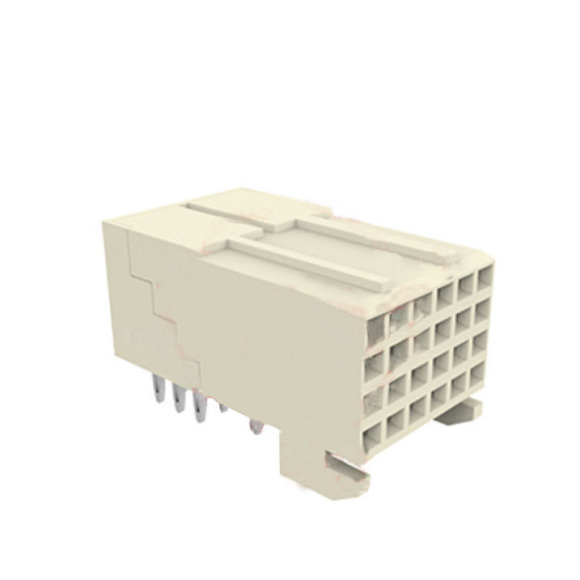

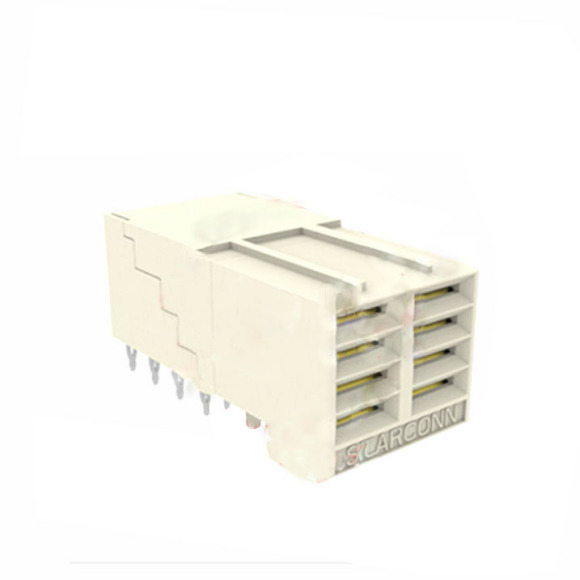

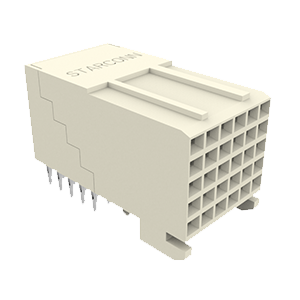

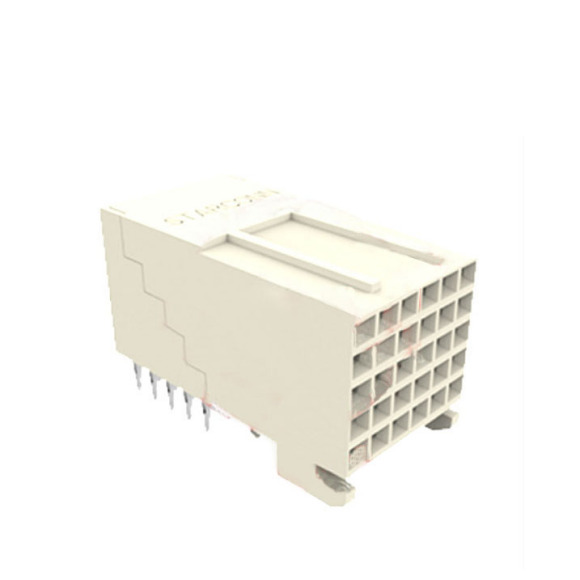

相关产品实物图片(图片仅供参考):
