STARCONN091A 系列PART NUMBERS: 091A01-0A000A-MF
091A01-0A100A-MF 091A01-0A200A-MF
091A01-0B000A-MF 091A01-0B100A-MF 091A01-0B200A-MF
091A01-0C000A-MF 091A01-0C100A-MF 091A01-0C200A-MF
091A01-0D000A-MF 091A01-0D100A-MF 091A01-0D200A-MF
091A01-0E000A-MF 091A01-0E100A-MF 091A01-0E200A-MF
091A01-0F000A-MF 091A01-0F100A-MF 091A01-0F200A-MF
091A02-0A000A-MF 091A02-0A100A-MF 091A02-0A200A-MF
091A02-0B000A-MF 091A02-0B100A-MF 091A02-0B200A-MF
091A02-0C000A-MF 091A02-0C100A-MF 091A02-0C200A-MF
091A02-0D000A-MF 091A02-0D100A-MF 091A02-0D200A-MF
091A02-0E000A-MF 091A02-0E100A-MF 091A02-0E200A-MF
091A02-0F000A-MF 091A02-0F100A-MF 091A02-0F200A-MF
091A03-0A000A-MF 091A03-0A100A-MF 091A03-0A200A-MF
091A03-0B000A-MF 091A03-0B100A-MF 091A03-0B200A-MF
091A03-0C000A-MF 091A03-0C100A-MF 091A03-0C200A-MF
091A03-0D000A-MF 091A03-0D100A-MF 091A03-0D200A-MF
091A03-0E000A-MF 091A03-0E100A-MF 091A03-0E200A-MF
091A03-0F000A-MF 091A03-0F100A-MF 091A03-0F200A-MF
091A04-0A000A-MF 091A04-0A100A-MF 091A04-0A200A-MF
091A04-0B000A-MF 091A04-0B100A-MF 091A04-0B200A-MF
091A04-0C000A-MF 091A04-0C100A-MF 091A04-0C200A-MF
091A04-0D000A-MF 091A04-0D100A-MF 091A04-0D200A-MF
091A04-0E000A-MF 091A04-0E100A-MF 091A04-0E200A-MF
091A04-0F000A-MF 091A04-0F100A-MF 091A04-0F200A-MF
091A08-0A000A-MF 091A08-0A100A-MF 091A08-0A200A-MF
091A08-0B000A-MF 091A08-0B100A-MF 091A08-0B200A-MF
091A08-0C000A-MF 091A08-0C100A-MF 091A08-0C200A-MF
091A08-0D000A-MF 091A08-0D100A-MF 091A08-0D200A-MF
091A08-0E000A-MF 091A08-0E100A-MF 091A08-0E200A-MF
091A08-0F000A-MF 091A08-0F100A-MF 091A08-0F200A-MF
091A13-0A000A-MF 091A13-0A100A-MF 091A13-0A200A-MF
091A13-0B000A-MF 091A13-0B100A-MF 091A13-0B200A-MF
091A13-0C000A-MF 091A13-0C100A-MF 091A13-0C200A-MF
091A13-0D000A-MF 091A13-0D100A-MF 091A13-0D200A-MF
091A13-0E000A-MF 091A13-0E100A-MF 091A13-0E200A-MF
091A13-0F000A-MF 091A13-0F100A-MF 091A13-0F200A-MF

STARCONN 091A 系列描述:

Product No. 091A
Product Name 5 Row Futurebus Female Connector

STARCONN091A系列连接器各项性能表如下:

连接器各项性能表如下:

产品特征:
Power Sum :
Right Angle Type
Telecom- and inNetwork-Systems
Block:1，2，3，4，8，13
Pitch:2.0mm
Press-Fit
4Row/5Row
主要材料:
Contacts:PhosphorBronze
Housing:HighTemperature Thermoplastic UL-94V-0.
Spacer:HighTemperature Thermoplastic UL-94V-0.

电气性能:
Current Rating:1 A
Voltage Rating:30VAC.
InsulationResistance:5，000 MΩ MIN.
DielectricWithstAnding Voltage:1，000 V AC For 1 Minute

机械参数/性能:
Mating Force:0.45NPer Pin MAX.
UnmatingForce:0.15N Per Pin MIN.
Press-Fit MatingForce:50 N MAX.
Plated ThroughHole:φ0.65~φ0.80mm

环境要求:
TemperatureRating:-55℃ to 125℃

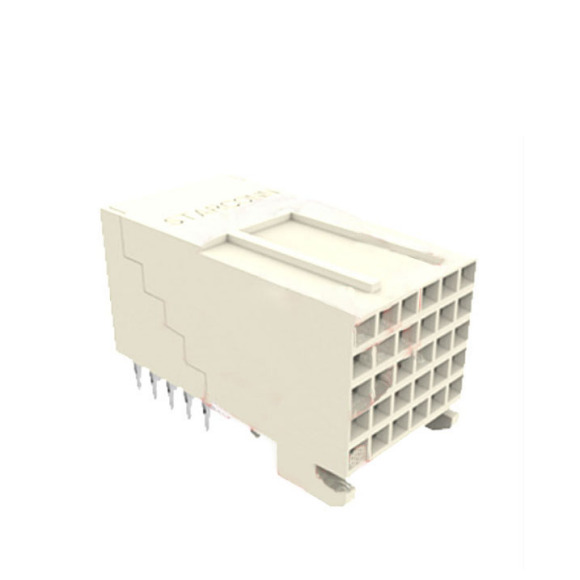

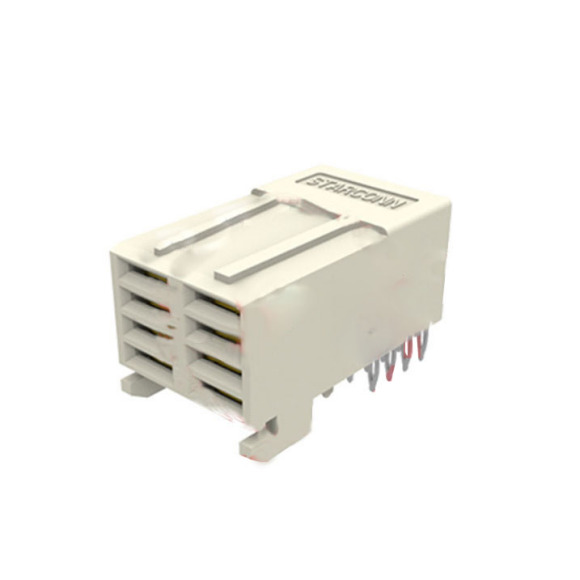

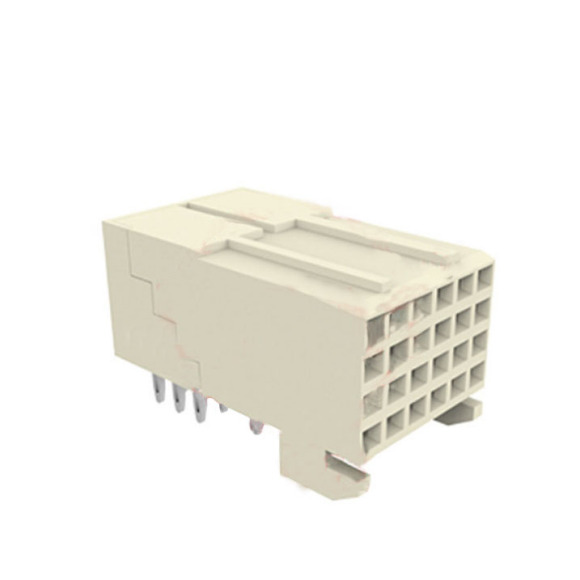

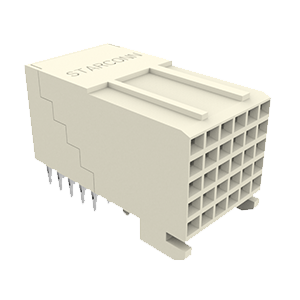

相关产品实物图片(图片仅供参考):
