STARCONN 061B 系列PART NUMBERS: 061B01-00000A-GF 061B01-01000A-GF
061B01-02000A-GF 061B01-00000A-MF 061B01-01000A-MF 061B01-02000A-MF
061B04-00000A-GF 061B04-01000A-GF 061B04-02000A-GF
061B04-00000A-MF 061B04-01000A-MF 061B04-02000A-MF
STARCONN 061B 系列描述:


Product No. 061B
Product Name 4 Row & 5 Row Futurebus Female Vertical Connector

STARCONN 061B 系列连接器各项性能表如下:

连接器各项性能表如下:

产品特征:
Power Sum :
Vertical Type
Telecom- and inNetwork-Systems
Pins:5Row 30 - 120
4Row 24 - 96
Pitch:2.0mm
Press-Fit


主要材料:
Contacts:PhosphorBronze
Housing:HighTemperature Thermoplastic UL-94V-0.

电气性能:
Current Rating:1 A
Voltage Rating:30VAC.
InsulationResistance:5，000 MΩ MIN.

机械参数/性能:
Mating Force:0.45NPer Pin MAX.
UnmatingForce:0.15N Per Pin MIN.
Press-Fit MatingForce:100 N MAX.
Plated ThroughHole:φ0.65~φ0.80mm

环境要求:
Temperature Rating︰-55℃ to 125℃

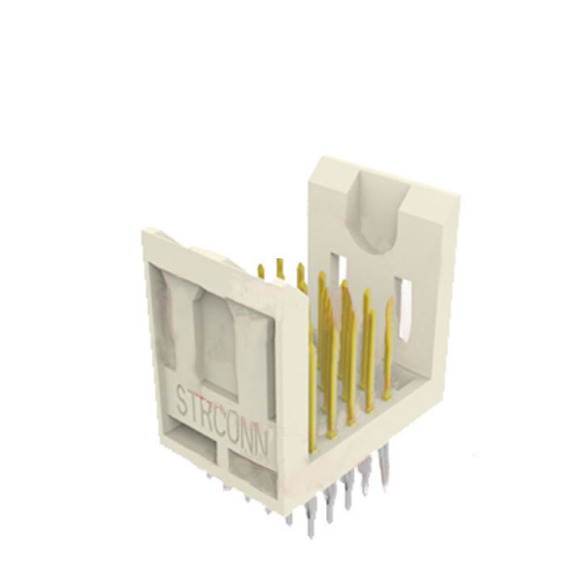

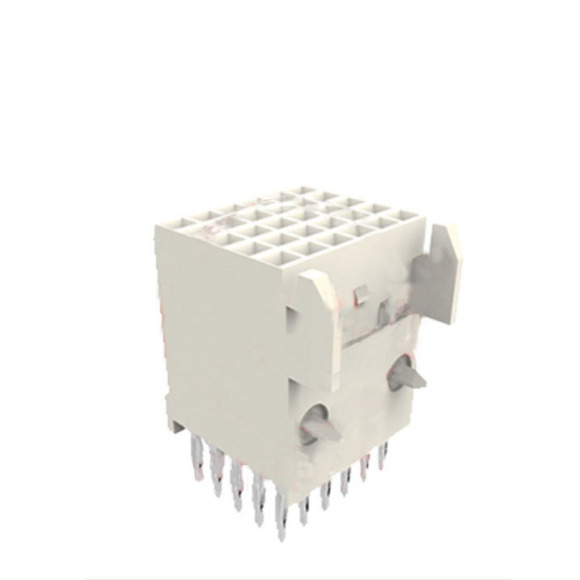

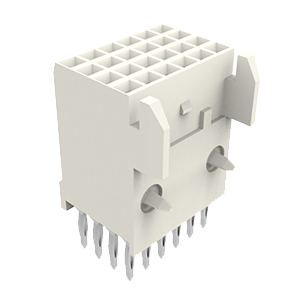

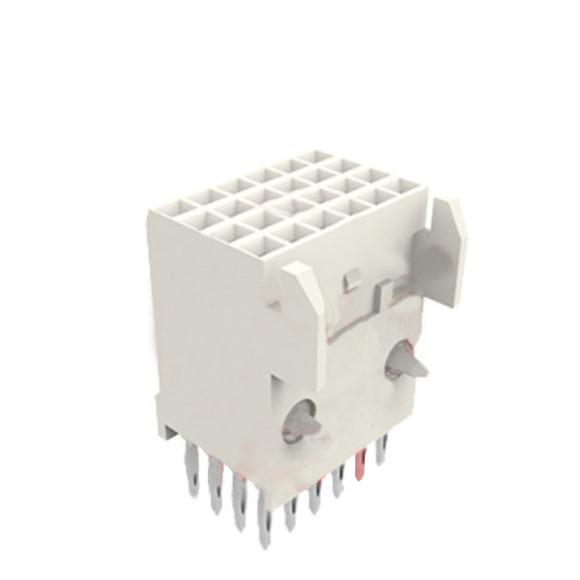

相关产品实物图片(图片仅供参考):
